A short circuit in a laptop is one of the most common hardware failures, which can cause the device to not turn on, shut down suddenly, or drain the battery quickly. This article will take a closer look at this common but complex issue and assess how likely and difficult it is to repair.
The principle of short circuit in a laptop computer
In the field of electronic engineering, a short circuit refers to the phenomenon that current flows directly from the positive electrode to the negative electrode without passing through the load, which causes the resistance in the circuit to decrease sharply, the current to increase, and a large amount of heat to be generated. If this happens inside the power adapter or battery, it may cause a fire or permanent damage. "Burn-in" usually refers to the situation where key components in electronic devices, such as processors, graphics cards, or other sensitive components, fail due to overheating.
Ways to diagnose laptop failures
If the computer motherboard has a short circuit, you can try the following steps to repair it:
Determine the burnt components: Observe the components on the motherboard. If there are signs of burns, determine the function and location of the burnt components, analyze the cause of component damage, and then replace the good components.
Find the heating components: If the motherboard is still short-circuited after replacing the components, you can set the current of the voltage regulator to about 1A, then plug in the power supply, gently touch the motherboard with your hand, and find the heating components. If you find it, replace it. If you can't find an obvious component, you can increase the current and continue to search.
Check the capacitor: The damage phenomenon of the capacitor is short-circuit breakdown. Use a multimeter to measure it, and the resistance is 0 ohms. From the appearance, it can be seen that there are traces of corrosion on the contacts at both ends.
If you find damaged components, you can try to replace them, but if the short circuit involves deep circuits on the motherboard or BGA chips, it is recommended to hand it over to a professional repairman. The whole process needs to be cautious to avoid expanding the fault.
Determine the feasibility and value of laptop repairs
Device value: The first thing to consider is the value of the affected device. An expensive gaming laptop is obviously worth investing more time and resources in repairing, while in some cases, it may be more economical to replace an older model rather than repair it.
Parts availability: Even highly skilled repairers may be limited if a particular model is no longer in production and parts are difficult to obtain. Supply chain management is important in such situations.
Technical complexity: For some high-level integrated electronic products (such as high-end machines with high-performance CPUs and GPUs), chip-level repairs require specialized knowledge and technology, which makes them more difficult.
Probability of success: In addition to the above factors, the actual success rate must also be considered. Sometimes, even if a thorough inspection is carried out and the correct measures are taken, the initial damage may be too severe to lead to unforeseen results.
The final result depends on many variables, including but not limited to the effective combination of precise cause determination, availability of suitable accessories, appropriate tools and techniques, and the involvement of experienced professionals.
How to avoid short circuits in laptops?
To avoid short circuits in laptops, you need to start with daily usage habits, storage environment, and hardware maintenance. Here are some key measures:
1.Keep dry and away from liquids
No liquid contact: Conductive liquids such as water and beverages are common causes of short circuits. Keep away from liquids when using. If accidentally spilled, immediately turn off the power and dry thoroughly (it is recommended to leave it for at least 24 hours).
Moisture-proof environment: A humid environment can easily cause corrosion or short circuits in internal components. In areas with high humidity, you can place a moisture-proof agent or use a dehumidifier.
2. Use the power supply correctly

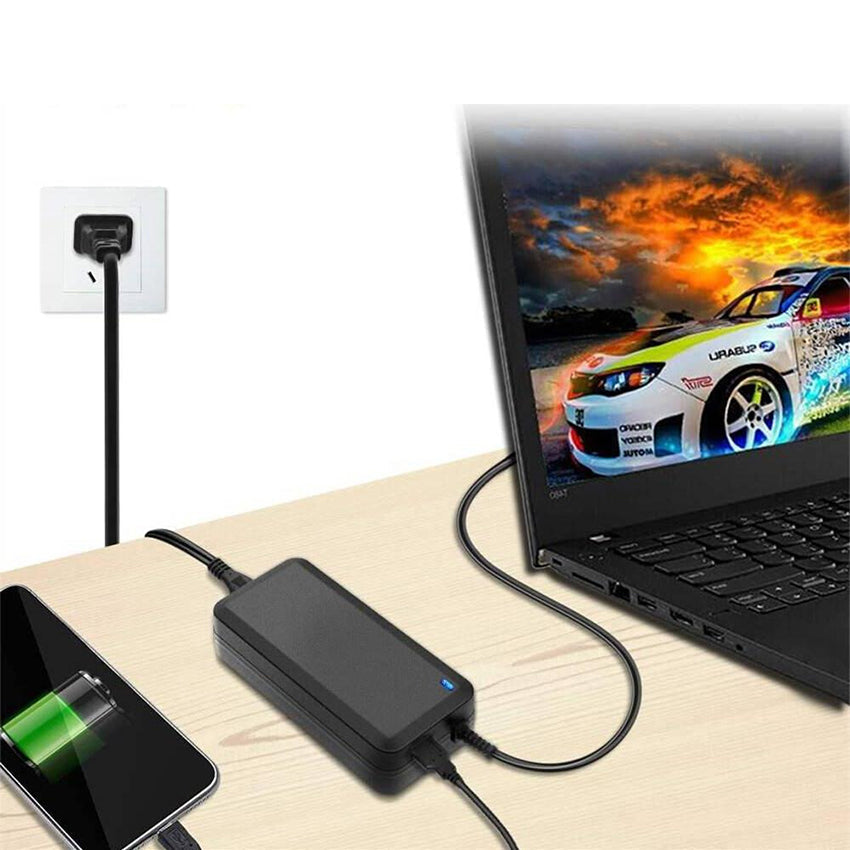

Laptop charger: Use a charger and battery certified by the manufacturer to avoid short circuits caused by unstable voltage of inferior accessories.
Avoid overcharging: Unplug the power supply in time after full to prevent battery overheating or circuit overload.
Check the power cord: Check the charging cable regularly for damage (such as exposed wires) and replace it immediately if any problems are found.
3. Prevent physical damage
Avoid squeezing or falling: Impact may damage the internal circuit or cause component contact and a short circuit. Use a protective case or a special backpack to carry it.
Be careful when disassembling: When upgrading the hardware yourself, be sure to turn off the power and prevent static electricity (such as wearing an anti-static bracelet) to avoid accidentally touching the motherboard components.
4. Heat dissipation and ventilation
Avoid blocking the heat dissipation holes: Do not use the notebook on soft surfaces (such as mattresses, sofas) to avoid blocking the vents and causing overheating.
Clean dust regularly: Dust accumulation may cause circuit short circuits or poor heat dissipation. It is recommended to clean the fan and heat sink every six months.
5. Storage and transportation
Store after shutting down: Turn off the machine and unplug peripherals when not in use for a long time to avoid potential risks in standby mode.
Avoid high/low temperature environments: Extreme temperatures will damage the battery and circuits. The storage temperature is recommended to be between 10°C and 30°C.
